With panel geometry resolved, the remaining problem was attachment. The objective required a no-drill solution.

That eliminated:

• Direct fasteners into interior trim
• Adhesive-backed mounting
• Reliance on factory bolts

None of these met the requirement for a non-permanent installation.

Structural Reality

The center console is plastic. It was not designed to serve as a structural mounting surface.

Mounted equipment would introduce:

• Continuous vibration from vehicle movement
• Off-axis loads when gear is pulled or repositioned
• Localized stress around mounting points

Any attachment method would need to account for these conditions without damaging the console or allowing the panel to loosen over time.

Interface Limitations

Unlike exterior vehicle panels, the center console provides very few usable mechanical features. There are no exposed structural members and very limited access to internal fasteners.

Most visible surfaces are cosmetic trim pieces. These parts are designed for appearance and assembly efficiency, not for supporting mounted equipment.

As a result, the panel could not rely on the console itself for primary structural support.

Rejected Approaches

Several approaches were considered and eliminated early.

Adhesive mounting
Rejected due to long-term reliability concerns under temperature fluctuation and vibration.

Single-surface compression brackets
Rejected due to potential for rotation under load.

Factory bolt reuse
Rejected due to geometry limitations and the absence of a suitable load path for panel torque.

Each option either introduced permanent modification or lacked mechanical certainty.

Constraint Definition

The mounting system needed to:

• Prevent vertical movement
• Resist rotational torque
• Distribute load across multiple contact points
• Avoid stressing or deforming trim

The console could not be treated as a structural beam. It needed to be captured. The solution would require mechanical compression, not surface friction.

Design Direction

The mounting strategy would need to satisfy several constraints simultaneously:

• No drilling or permanent modification
• No reliance on adhesives
• Secure under vibration and load
• Removable without damage

This narrowed the viable solutions considerably.

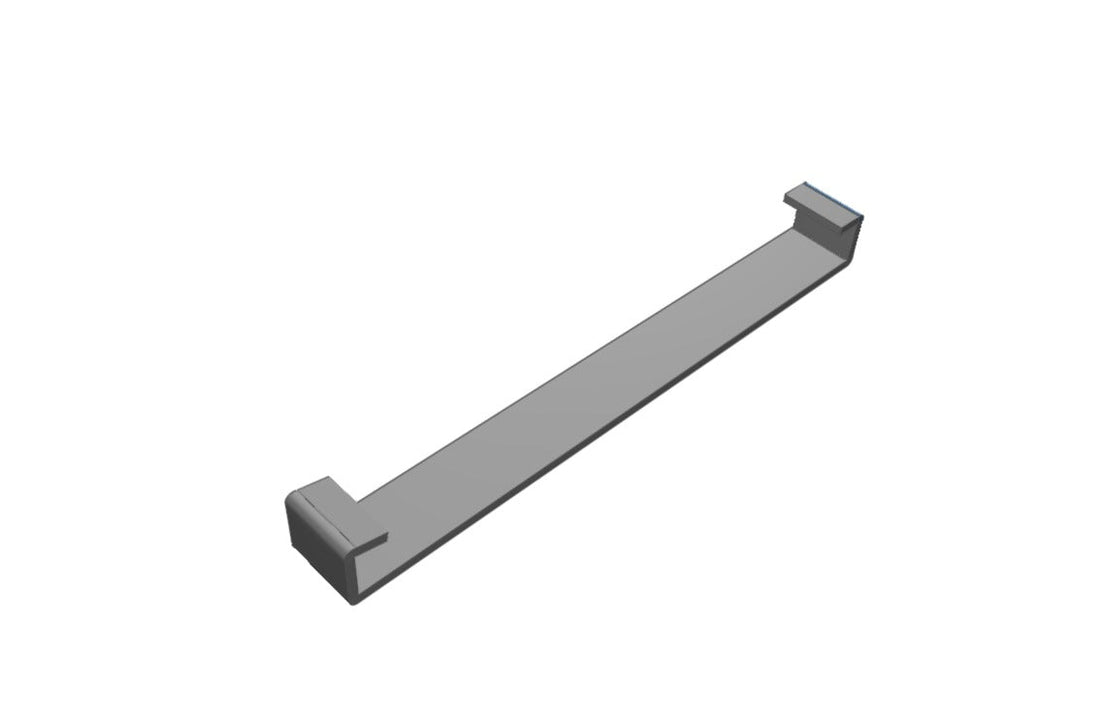

Rather than attaching directly to the console structure, the panel would need to engage with existing geometry within the console area. The console itself would become part of the retention system.

The Next Step

The problem was no longer panel design.

It was load transfer.

The challenge became identifying a way to anchor the panel using the limited geometry available while maintaining rigidity and long-term stability. The mounting system would need to function as a mechanical constraint, not simply a fastener.

That became the next phase of development.
